Premium Pasting Fibres

For Reinforcement of Lead-Acid Battery Plates

batterie
Faser-Mai-2017-2mm-a-1

PB EUROFIBER CUT

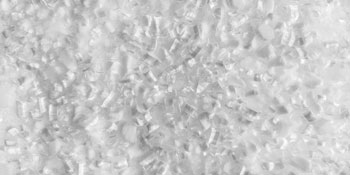

Battery pasting fibres are available in
diameters from 15 – 32 microns and
fibre lengths from 1.5 – 6 mm.

PB EUROFIBER CUT – Premium-Quality Fibres for Battery Plates

PB EUROFIBER CUT®
Article Code		dtex
g/10000m		Diameter
µm		Length
mm		Theoretical Length
km per kg		Fibre Count
approx. 10⁶/kg
Polymer
15/21.715.42.059002700PP
18/22.217.52.245002100PP
20/53.020.54.63300725PP

PP Fibres with other dimensions are available on request.

slider3-1902x545

WE ARE A SINGLE-SOURCE MANUFACTURER OFFERING:

  • Selected high-quality raw materials
  • Fibres with custom-engineered functional additives
  • Full control of the spinning and cutting processes
  • Product modifications to your specifications
  • PP fibres with outstanding chemical resistance and physical properties
  • Exacting in-house quality control
  • Highest fibre quality for trouble-free pasting process
  • Superior reinforcement of lead-oxide pasted plates

EFFICIENCY ADVANTAGE OF PP COMPARED TO PAN OR PET

PPPANPET
Specific weight (g /cm³)0.911.181.36
Theoretical fibre length (km/ kg)*590045503950

EFFICIENCY ADVANTAGE OF THINNER FIBRE DIAMETER

PPPANPET
Fibre diameter in microns152032
Theoretical fibre length (km/ kg)*590036001400

Conclusion:
Higher fibre length (km / kg) = More fibres / kg = Higher efficiency

All data given here are approximate values provided without engagement.
We recommend evaluation of product suitability by appropriate testing before use.
